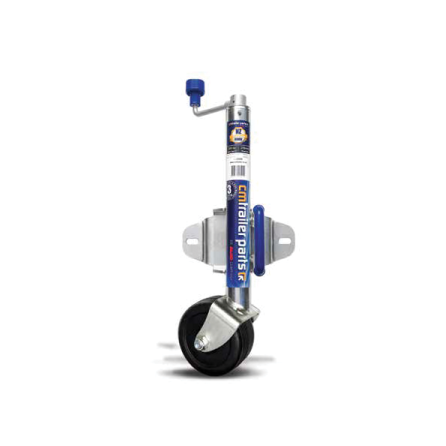

250kg Capacity Premium Jockey Wheel

$178.00

The high-class range of CM Premium jockey wheels combine high quality and intelligent engineering, to provide a range suitable for demanding trailer applications.

The static load capacity and heavy duty components ensure superior reliability & performance.

This unique design is covered by Registered Design in Australia and New Zealand and can be either welded or bolted to the drawbar.

Use for light general trailers and light boat tailers. Best for short maneuvering on solid to very firm terrain.

150mm x 70mm Solid rubber wheel
Zinc Plated
250kg static load
Minimum Height: 510mm
Extension: 265mm
3 year warranty
Mounting
The Premium Swivel Bracket eliminates the need to remove the jockey wheel from the trailer - just pull the release handle and the jockey wheel rotates into a suitable travelling position.

Horizontal slots 28mm x 13mm spaced at 198mm centres allows for bolting. The 8mm plate is suitable to be welded when required.
