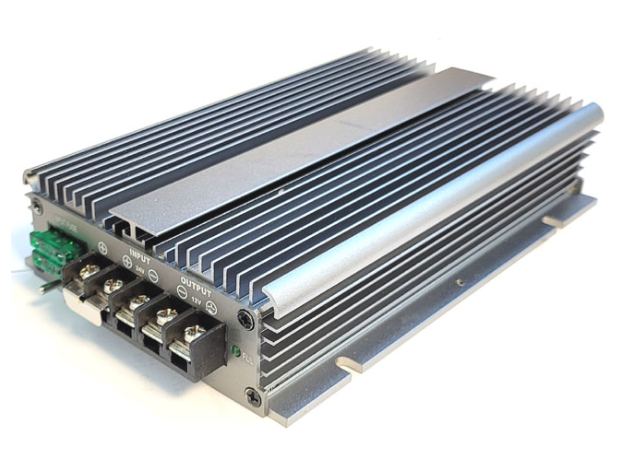

Even Battery Charger

$590.00

The 39-182 Even Charger is widely regarded as industry standard equipment for both OEM
and aftermarket installations in Motorhomes, Marine and Commercial applications in New Zealand
for charging an auxiliary 12V Battery or Battery bank from a 24V vehicle charging system.
Alternatively, it can also be used as a Charge Equaliser, to distribute the charge equally when
tapping off one battery for 12V auxiliary equipment in a 24V system.

It is suitable for charging Lead Acid, Deep Cycle, Gel Cell and Calcium-Calcium type batteries
(refer voltage setting notes).

Note that the Evencharger will ONLY start up and operate when the engine is running and the
Alternator is charging. At all other times it will NOT charge the 12V Battery, even though it is
permanently connected to both 24V and 12V Battery banks.

Capable for 12V 30 Amps continuous output (ideally should be duty cycled to prolong lifespan)
Self Starting starts up automatically once vehicle charge rate is 26.5V or higher
Self Regulating automatically senses battery level and evenly regulates charge level to suit
Current Limited preventing overloading and battery damage
Heavy Duty 30 Amp Fusible Link system integrally mounted for easy removal / inspection
12 Month Manufacturers Warranty from date of installation (does not include water ingress/damage etc)
