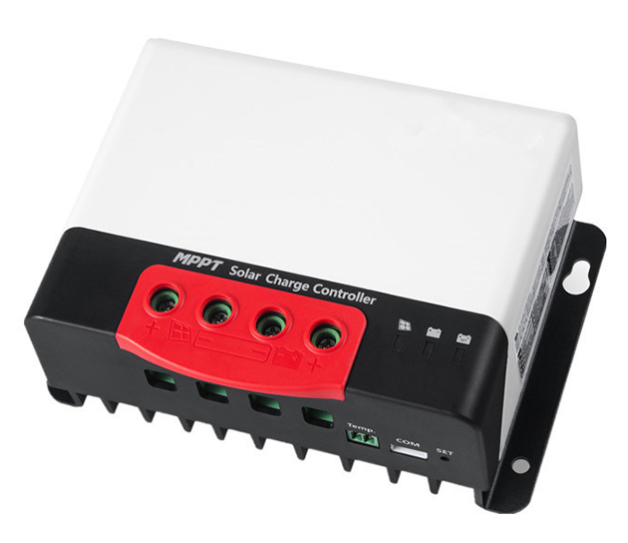

MPPT Charge Controler 20Amp

$270.00

The advanced dual-peak or multi-peak tracking technology. MPPT tracking efficiency
is up to 99.9%. Advanced digital power technology raises the circuit energy conversion
efficiency to 98%

The controller features a limited current charging mode. When The solar panel power
exceeds a certain level and charging current is larger than the rated current, the controller
will automatically lower the charging power and bring the charging current to the rated level.

Instantaneous large current startup of capacitive load is supported

Automatic identification of storage battery voltage.

System Voltage: 12V/24V
Static Power: 0.12W
Maximum Input voltage of solar energy (25 degrees C): 100V
Maximum Power Point Voltage Range: Battery voltage +2 - 75V
Rated Charging Current: 20A
Solar Panel Power (12V Battery): 260W
Solar Panel Power (24V Battery): 500W
Support Battery Type: Lead-acid, gel, open, lithium
Temperature Compensation Coefficient: -3mV/C/2V (defaults)
Operating Temperature: -35 C - 80 C
Humidity: 95%, no condensation
Protection Level: IP32
Weight: 650g
Communication Method: TTL (3.3V)
Product Size (LxWxH): 150 x 156 x 62mm
Terminals: 10mm2 / 8AWG
Function Certification: IEC62509:2010
