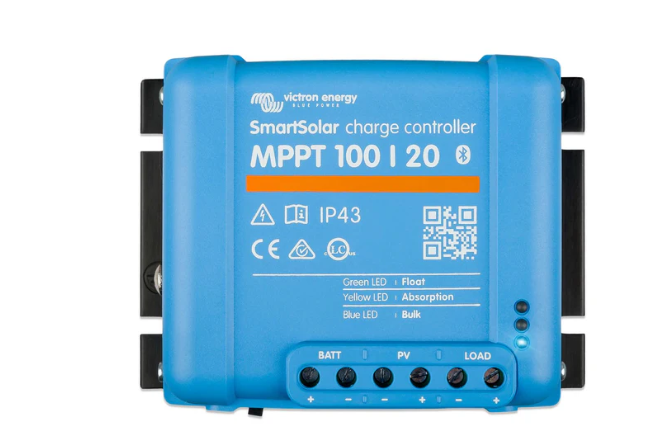

SmartSolar MPPT 100/20 (12/24V-20A)

$260.00

A highly efficient and intelligent MPPT solar charge controller designed to charge and maintain 12/24/36/48V lead-acid, AGM or LiFeP04 batteries systems from 12/24/36/48V solar panels. With built-in Bluetooth you can monitor charging using the Victron Connect App on your phone.
Maximum Power Point Tracking (MPPT) increases energy harvest by up to 30% compared to PWM chargers and are great on cloudy days
Programmable battery management and innovative tracking algorithms allows charger to get the most out of your solar panels and to suit the battery chemistry you are using
Adaptive 3-stage battery charging includes bulk, absorption and float to charge your battery as quickly as possible and then keep the battery in optimum condition
Battery Life mode can be enabled to maximise the life of your battery ensuring your battery is sufficiently charged
DC load output port automatically disconnects any connected devices at a predetermined voltage to avoid over-discharging and possibly damaging your battery
Bluetooth connection allows you to configure and monitor the solar charger and view real-time or historical solar and battery data like battery voltage, current and temperature, load output current, solar panel voltage and current
Safety features include over-current, over-temperature, over-voltage, reverse battery or PV polarity and output short circuit protection
VE.Direct port to connect and be read by a Victron GX panel
Battery Voltage: 12/24/36/48V (auto-select)
Rated Charge Current: 20A
Nominal PV Power: 220W/12V, 440W/24V, 880W/48V
PV Short Circuit Current: 20A max.
PV Open Circuit Voltage: 100V max.
Peak Efficiency: 98%
Charge Voltage: Absorption: 14.4V/28.8V/57.6V (adjustable), Float: 13.8V/27.6V/55.2V (adjustable)
Continuous Load Current: 20A
Low Voltage Load Disconnect: 11,1 V / 22,2 V / 44,4 V or 11,8 V / 23,6 V / 47,2 V or Battery Life algorithm
Low Voltage Load Reconnect: 13,1 V / 26,2 V / 52,4 V or 14 V / 28 V / 56 V or Battery Life algorithm
Screw Terminals: 6mm2
IP43 protection
Dimensions: 100(h) x 113(w) x 60(d)mm
