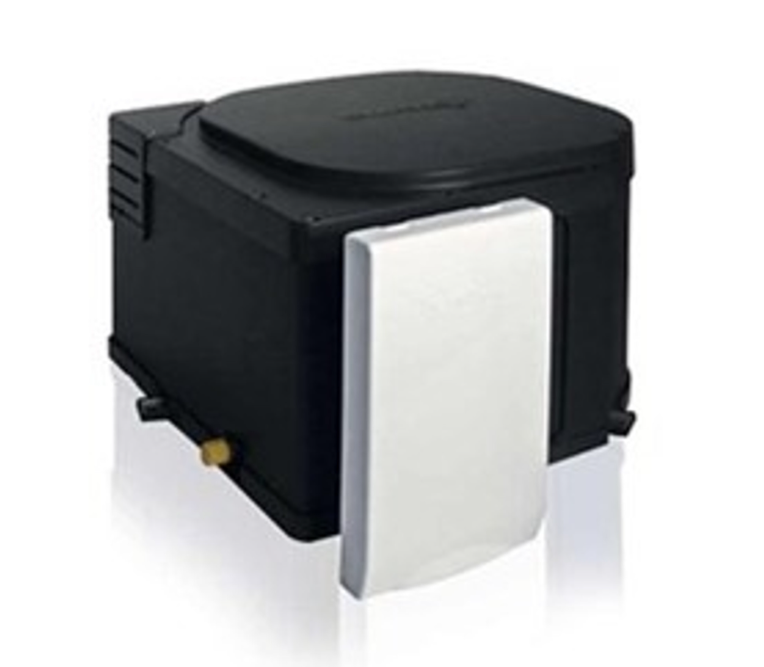

Truma Gas/240V Water Heater 10L

$1,900.00

The Truma Water Heater has a powerful gas burner heating the water in your caravan or motor home quickly. It also has an electric heating element that heats the water even faster.
The boiler has excellent insulation to ensure that almost no heat is lost. If the water temperature drops, the electronics reignite automatically.
When the Truma gas boiler is running, water is continuously reheated while you are showering. This means that a second person can shower immediately afterwards.

Features:
Insulation prevents heat loss
High pressure resistance of the Truma gas water heater (all submersible and pressure pumps up to 2.8 bar can be used)
Safety ensured with electronic control components and overpressure valve
Stainless steel container
Low gas consumption with high efficiency
Option to use on gas only, 240V or mixed mode
Very compact, requires little installation space
All fittings included are JG push-in connections for easier and faster installation
Specifications:

Energy sources: LPG
Power supply: 230V
Output of electric heating element: 8 50/1300W
Gas output: 1500W
Power consumption (at230V): 3.7/5.7A
Water capacity: 10 litres
Heating time: from approx. 15°C to approx.70°C:
approx. 31 min. (gas mode)
approx. 29 min. (electric mode)
approx. 16 min. (mixed mode)
Gas consumption: 120g/h
Weight empty: approx. 7.4kg
Dimensions: 360 x 350 x 261mm(L x W x H)
Power consumption (at 12V):
Ignition: 0.16A
Heating: 0.12A
Stand-by: 0.05A
Temperature limit: 70°C
Pump pressure: max. 40psi
System pressure: max. 65psi
